Graphic
Card Installation
Most modern graphics cards are
AGP based and connects to the AGP bus of the motherboard.

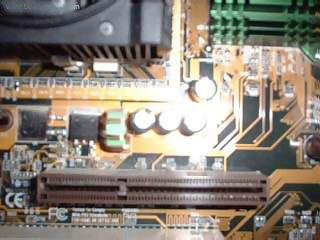

An AGP bus (slot) looks like the following image. The brown
slot is where you connect your AGP graphics card.

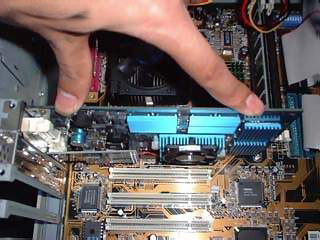

Place
your AGP card on top of the slot and gently push it down.
The card should firmly sit into position.

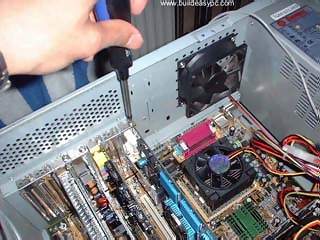

All you
need to do now is to screw the metal plate on the front of
the card to the ATX case. Use the screws supplied with case
and screw the card to the case.
>>
