Floppy Drive Installation

The rear side of a floppy drive looks similar to the following image.

Floppy Drive Installation

The black connector on the left hand side is the floppy disk connector. It is different from the IDE connector and uses a different cable. The small white connector on the right hand side is the power connector for the floppy drive. Figure 1 and 2 below shows what a floppy drive cable and floppy drive power connector looks like.

Floppy Drive Installation

Figure 1 - Floppy drive cable.

Floppy Drive Installation

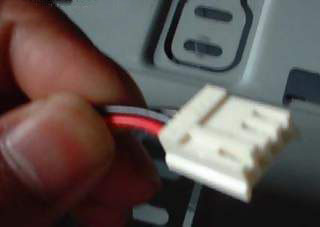

Figure 2 - Floppy drive power cable

Place the floppy drive into the FDD mounting slot as shown. Screw the drive securely into place.

Floppy Drive Installation

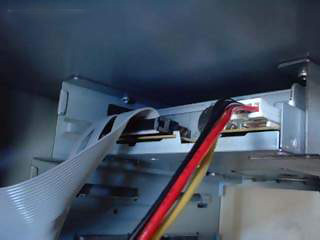

Insert the floppy drive cable into the floppy drive connector. Make sure the pin 1 on the cable connects to the pin 1 on the floppy drive connector. As you already know by now that pin 1 is the red or pink strip on the edge of the floppy drive cable. Most floppy drive cables are designed so that it will only go in on way, so you can not connect it incorrectly.

Floppy Drive Installation

Push the floppy drive power cable to the power connector. This will only go in on way.

Floppy Drive Installation

Finally connect the other end of the floppy drive cable to floppy drive connector on your motherboard. Make sure pin 1 on the cable connects to pin 1 on the connector.
